Fluke 789 ProcessMeter Digital Multimeter Loop Calibrator W/ Leads -Calibrated

  • Fluke 789 ProcessMeter Digital Multimeter Loop Calibrator W/ Leads -Calibrated
  • Fluke 789 ProcessMeter Digital Multimeter Loop Calibrator W/ Leads -Calibrated
  • Fluke 789 ProcessMeter Digital Multimeter Loop Calibrator W/ Leads -Calibrated
  • Fluke 789 ProcessMeter Digital Multimeter Loop Calibrator W/ Leads -Calibrated
Herkunftsort China
Markenname fluke
Zertifizierung /
Modellnummer 789
Min Bestellmenge 1 Stk
Preis USD 1135/PC
Verpackung Informationen Originalverpackung
Lieferzeit 5 Werktage
Zahlungsbedingungen T/T
Versorgungsmaterial-Fähigkeit 1000 Prozent/Monat

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Frequenz bis 19,999 kHz, 0,005 % + 1 Kontinuität Piept bei Widerstand < 100 Ω
Widerstand-Maß bis 40 MΩ, 0,2 % + 1 Diodentest 2,0 V Schuhdioden-Spannungsabfall
Mindestbestellmenge 1 Stk
Hinterlass eine Nachricht
Produkt-Beschreibung

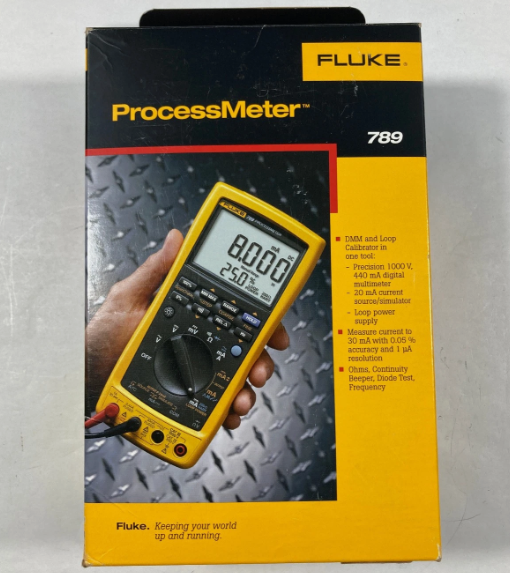

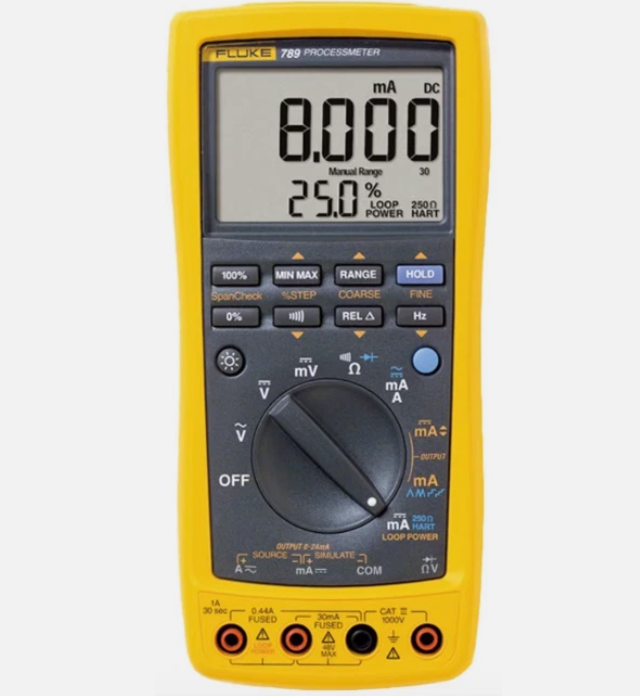

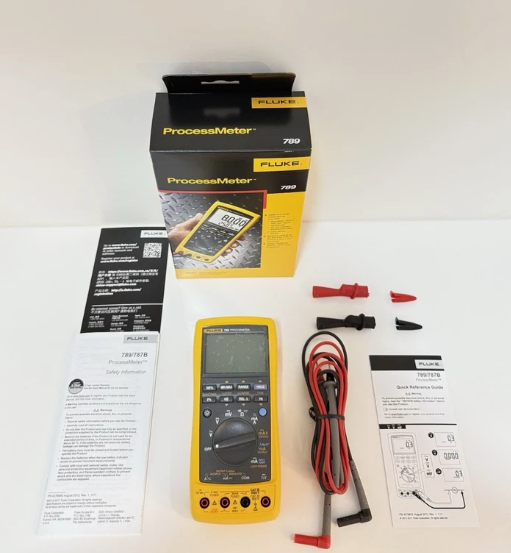

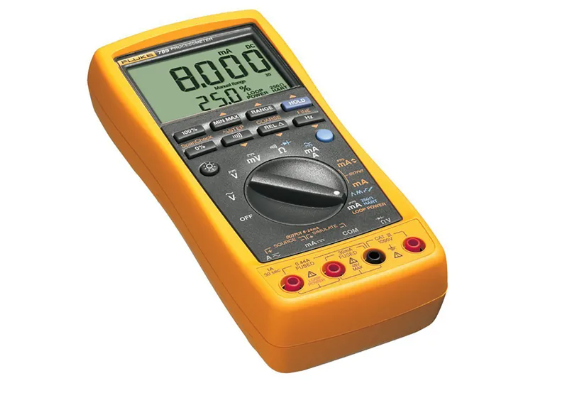

Product overview: Fluke 789 ProcessMeter™

Fluke 789 ProcessMeter™ doubles your troubleshooting power

The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals. It combines the functionality of a full-featured loop calibrator with the power of a CAT III 1000 V, CAT IV 600 V safety rated digital multimeter, and the wireless capabilities of Fluke Connect connectivity with optional IR3000FC module. The 789 has a large, dual display with two levels of backlighting and externally accessible fuse and batteries for easy replacement. And its built-in, selectable 250-ohm HART® resistor eliminates the need to carry a separate resistor.

The 789 also has a built-in 24-Volt loop supply, which reduces the need to carry a separate power supply when doing offline transmitter testing. You can also add the wireless data logging capabilities of the Fluke Connect™ mobile app to log data wirelessly to your smart phone and review it from a remote location.

*Requires Fluke IR3000FC module (not included). Not all models are available in all countries. Check with your local Fluke representative.

Do a lot more while carrying a lot less

The 789 provides all standard DMM capabilities including frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper. Combine that with the ability to troubleshoot every part of the loop.

Measure, source, simulate 4-20 mA signals, measure resistance, measure power, provide power to the loop and provide 250-ohm resistance to the loop. The 789 includes SpanCheck; 0% and 100% buttons to toggle between 4 and 20 mA sourcing, while the display can simultaneously show mA and % of scale readings for faster troubleshooting. It also delivers 1200-ohm drive capability on mA source.

Accuracy

This ProcessMeter offers manual step, 100%, 25%, Coarse, Fine, plus auto step and auto ramp. It also delivers 0.1% DC voltage accuracy and 0.05% DC current accuracy.



Specifications: Fluke 789 ProcessMeter™

Specifications
Current measurement Range 0-1 A AC or DC
Resolution 1 mA
Accuracy 0.2% + 2  (DC)
Range 0-30 mA
Resolution 0.001 mA
Accuracy 0.05% + 2
Current sourcing Range 0-20 mA or 4-20 mA
Resolution 0.05% of span
Drive capability 24 V Compliance or 1200 Ω @ 20 mA
Frequency to 19.999 kHz, 0.005% + 1
Continuity Beeps for resistance < 100 Ω
Voltage measurement Range 0-1000 V AC (true-rms) or DC
Resolution 0.1 mV to 1.0 V
Accuracy 0.1% Rdg + 1  (VDC)
Resistance measurement to 40 MΩ, 0.2% + 1
Diode test 2.0 V shoes diode voltage drop
Display current and % of span Yes
Auto Step, Auto Ramp Yes
Environmental Specifications
Operating temperature -20°C to 55°C
Storage temperature -40°C to 60°C
Humidity (without condensation) 95% up to 30°C
75% up to 40°C
45% up to 50°C
35% up to 55°C
Temperature coefficient 0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C)
Safety Specifications
Electrical safety Designed in accordance with IEC 61010-1: Pollution Degree 2
Overvoltage category IEC 61010-2-033: CAT IV 600 V / CAT III 1000 V
Maximum voltage 1,000 V
Mechanical and General Specifications
Size (H x W x L) 50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in)
Weight 610 g (1.6 lbs)
Batteries 4 AA alkaline batteries
Warranty 3 years
Battery life 140 hours typical (measurement), 10 hours typical (sourcing 20 mA)
Shock and vibration Random, 2 g, 5-500 Hz
1 meter drop test
