UNI-T Unit Thermal Imager UTi165A Temperature Thermal Imaging Camera Industry Temperature Tester

  • UNI-T Unit Thermal Imager UTi165A Temperature Thermal Imaging Camera Industry Temperature Tester
  • UNI-T Unit Thermal Imager UTi165A Temperature Thermal Imaging Camera Industry Temperature Tester
  • UNI-T Unit Thermal Imager UTi165A Temperature Thermal Imaging Camera Industry Temperature Tester
  • UNI-T Unit Thermal Imager UTi165A Temperature Thermal Imaging Camera Industry Temperature Tester
Herkunftsort China
Markenname uni-t
Zertifizierung /
Modellnummer UTi165A
Min Bestellmenge 1 Stk
Preis USD 160/PC
Verpackung Informationen Originalverpackung
Lieferzeit 1-3 Arbeitstage
Zahlungsbedingungen T/T
Versorgungsmaterial-Fähigkeit 1000 Prozent/Monat

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
IR-Auflösung (Pixel) 160×120 Anzeige 2,8-Zoll-TFT-LCD (320 x 240)
Sichtfeld 56°×42° Fokus Konzentrieren Sie sich frei
Temperaturmessbereich -10℃~400℃
Hinterlass eine Nachricht
Produkt-Beschreibung

Heavy Duty Thermal Camera

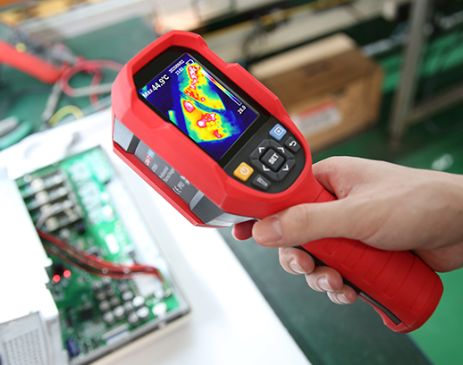

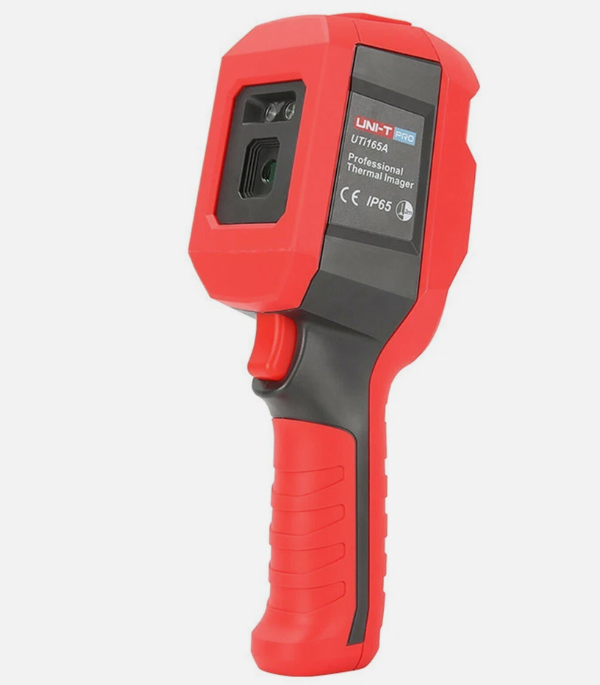

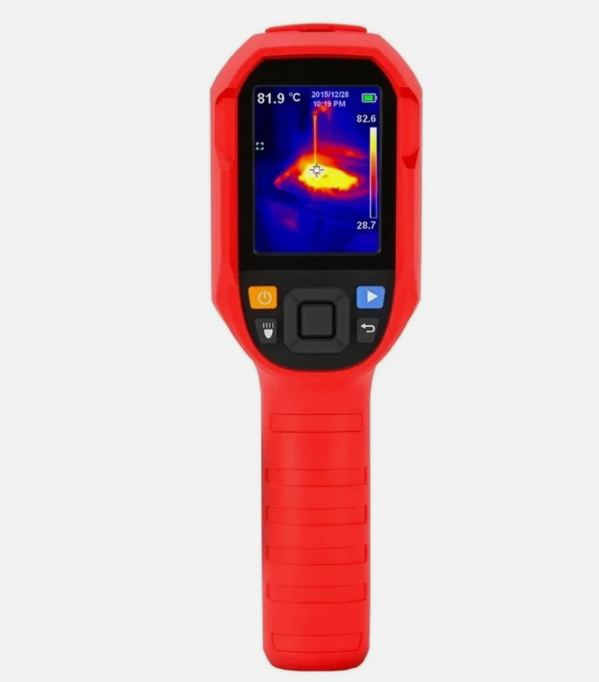

UTi165A is a rugged and ergonomically designed thermal camera, powerful and user friendly with great performance, with 160×120 pixels IR resolution which can automatically track the objective’s temperature from -10℃~400℃. It is an affordable professional troubleshooting tool, widely used in many applications.

Features :

  • Durable and user-friendly
  • 8” TFT display screen (320×240 Pixels)
  • IR resolution: 160×120
  • Temperature measurement range: -10℃ to 400℃ / 14℉ to 752 ℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Color palettes: 5(White hot, Red hot, Ice blue, Rainbow, Ironbow)
  • LED flashlight
  • PC software analysis
  • Rechargeable Li-ion battery
  • 1/4” tripod mounting hole
  • IP65
  • 2m drop proof



Product Specifications of UTi165A

Technical Data
IR resolution (Pixels) 160×120
Display 2.8” TFT LCD (320×240)
Field of view(FOV) 56°×42°
Thermal sensitivity(NETD) ≤50mk
Spatial resolution(IFOV) 6.1mrad
Frame rate ≤9Hz
Spectral range 8~14µm
Focus Focus free
Temperature measurement range -10℃~400℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 5
(White hot, Red hot, Ice blue, Rainbow, Ironbow)
Image modes Thermal
Hi/Lo temperature alarm Icon,LED flashlight
PC software analysis √
General Characteristics
Battery Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time ≥ 6 hours
USB Type-C
IP rating IP65
Drop proof 2m
Storage Up to 32GB Micro SD card
Image/Video storage format BMP
Certificates CE,FCC,RoHS
Product net weight 490g
Product size 236mm×75.5mm×86mm



Applications of UTi165A

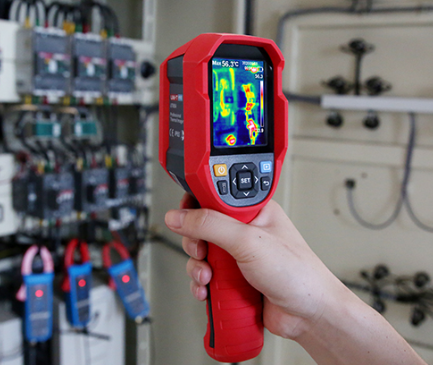

PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.
