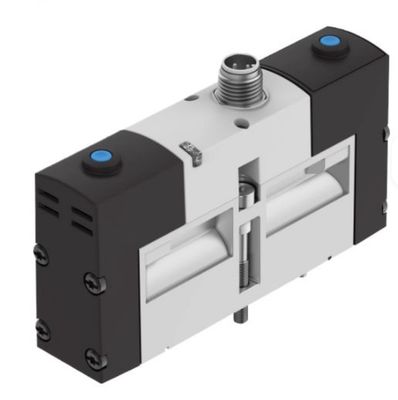

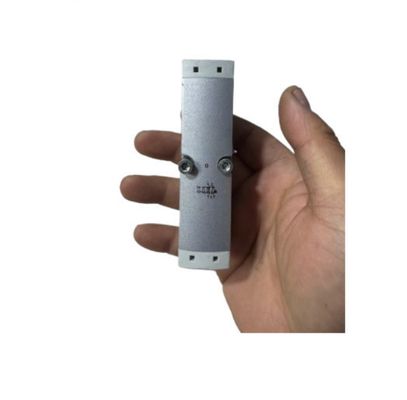

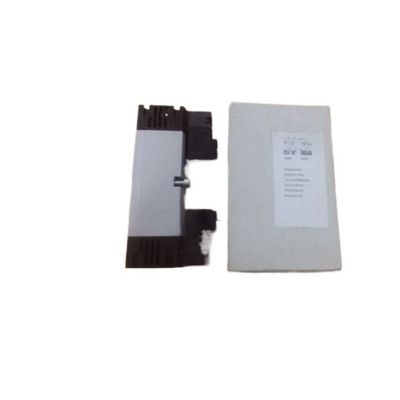

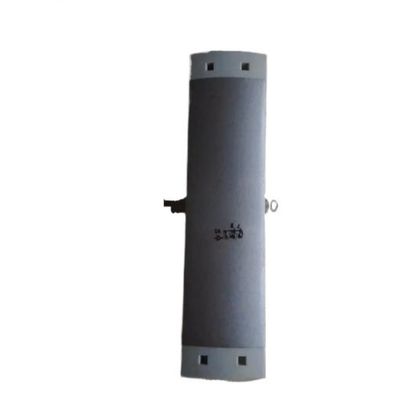

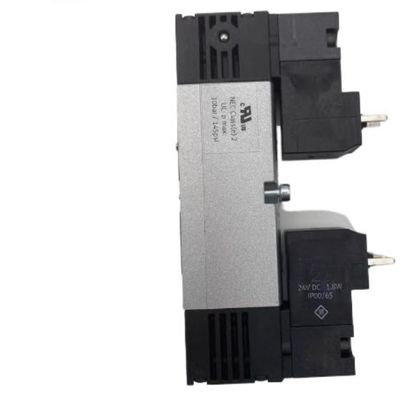

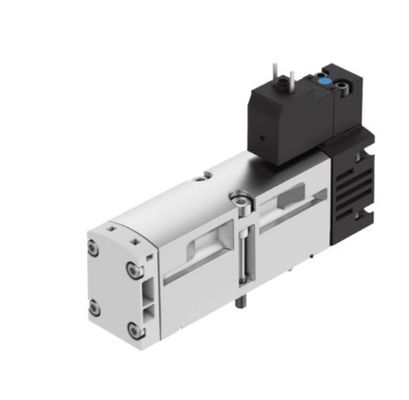

Brand New Original Festo Solenoid Valve VSVA-B-M52-MH-A1-1C1 546702 VSVA-B-M52-MH-A1-1R5L

Feature Value Valve function 5/2, monostable Actuation type Electrical Valve size 26 mm Standard nominal ow rate 1100 l/min Pneumatic working port Sub-base, size 26 mm according to ISO 15407-1 Connecting plate size 01 according to VDMA 24563 G1/4 Operating voltage 24V DC Operating pressure 0.3 MPa...1 MPa 3 bar...10 bar Structural design Piston gate valve Reset method Mechanical spring Certication c UL us - Recognized (OL) Degree of protection IP65 NEMA 4 Nominal width 9 mm Exhaust air function With ow control option Sealing principle Soft Mounting position Any Conforms to standard ISO 15407-1 VDMA 24563 Manual override Non-detenting Type of control Pilot-controlled Pilot air supply port Internal Flow direction Non-reversible Lap Overlap Signal status display LED Pilot pressure MPa 0.3 MPa...1 MPa Pilot pressure 3 bar...10 bar Flow rate of pneumatic valve 1400 l/min Flow rate of pneumatic valve on individual sub-base 1100 l/min Optimized ow rate of pneumatic valve pneumatically concatenated ow1100 l/mi
