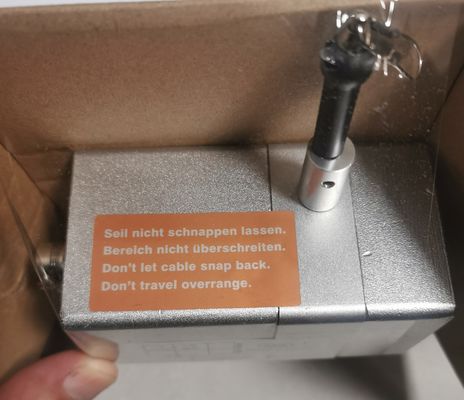

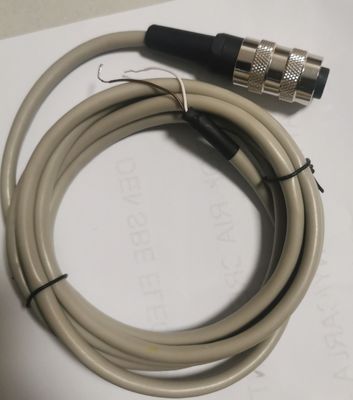

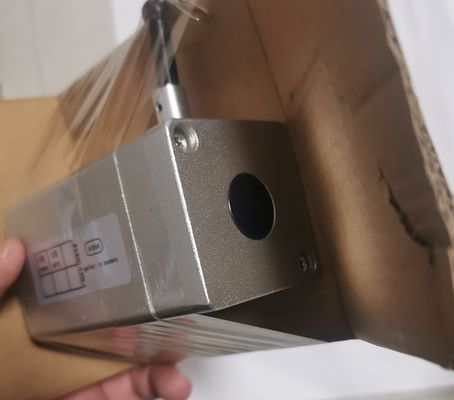

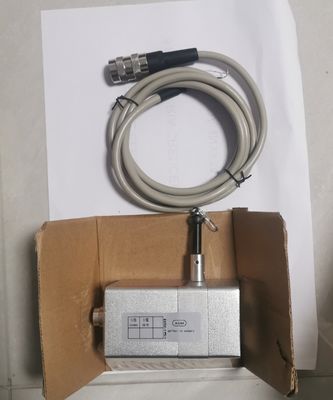

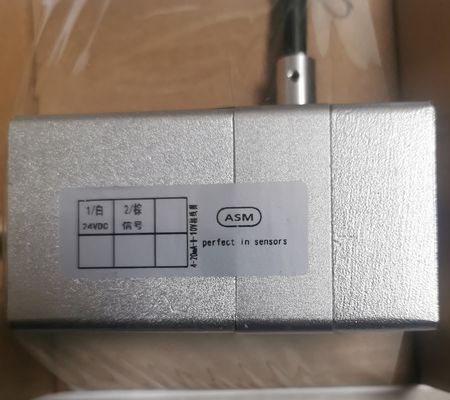

Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price

  • Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price
  • Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price
  • Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price
  • Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price
  • Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price
Herkunftsort Deutschland
Markenname ASM
Zertifizierung -
Modellnummer WS10-250-420A-L10-SB0-M12
Min Bestellmenge 1
Preis USD120/PC
Verpackung Informationen Original
Lieferzeit 2 Wochen
Zahlungsbedingungen L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit 1000

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Krieger 1 Jahr Temperaturbereich -20... +85 °C
Gewicht Ungefähr 550 G. Verbindung Stecker M12, 8 Pin
Hinterlass eine Nachricht
Produkt-Beschreibung

WS10 - Cable Extension Position Sensor Version with Analog output, SSI output Specifications Order options Measurement range 100 / 125 / 375 / 500 / 750 / 1000 / 1250 mm 100 / 125 / 375 / 500 / 750 / 1000 / 1250 Resolution Analog: quasi infinite Output Potentiometer 1 kΩ Voltage 0 ... 10 V Current 4 ... 20 mA, 2 wire Current 4 ... 20 mA, 3 wire Current output, programmable Voltage output, programmable Signal conditioner SSI 12 bit Signal conditioner SSI 14 bit Signal conditioner SSI 16 bit R1K 10V 420A 420T PMUI PMUV ADSI ADSI14 ADSI16 Linearity ±0.10% f.s. (standard) ±0.05% f.s. (optional) L10 L05 Sensing device Precision potentiometer Material Aluminum measuring cable: stainless steel Protection class IP65 (with mating connector only) Cable fixing M4 cable fixing Cable clip M4 SB0 Connection Connector M12, 8 pin M12 Temperature range -20 ... +85 °C Weight approx. 550 g EMC DIN EN 61326-1:2013 Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price 0Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price 1Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price 2Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price 3Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price 4
