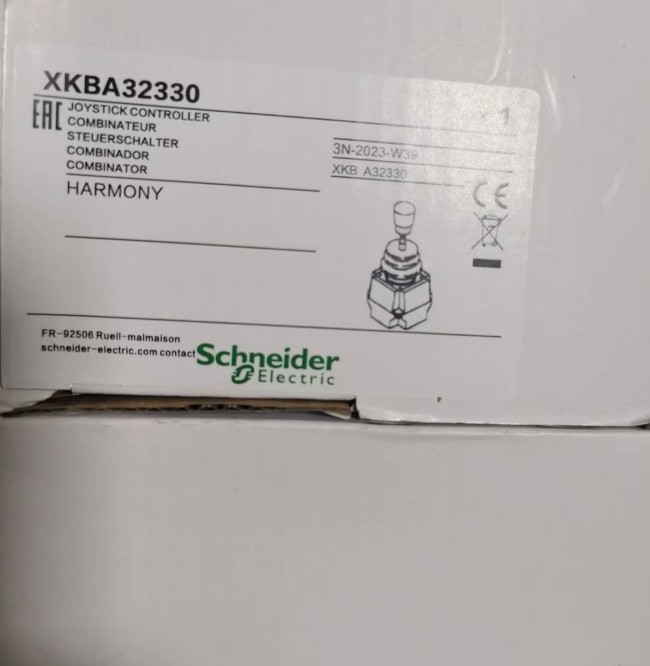

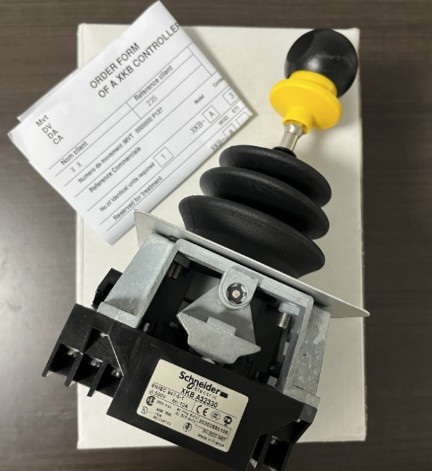

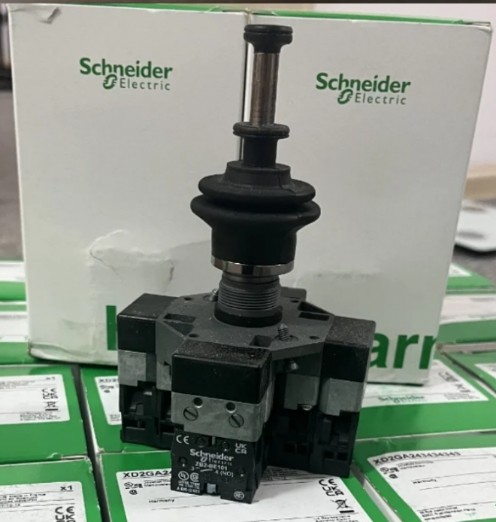

Schneider XKBA32330 Complete joystick controller, Harmony XK, XKBA light hosting application

  • Schneider XKBA32330 Complete joystick controller, Harmony XK, XKBA light hosting application
  • Schneider XKBA32330 Complete joystick controller, Harmony XK, XKBA light hosting application
  • Schneider XKBA32330 Complete joystick controller, Harmony XK, XKBA light hosting application
  • Schneider XKBA32330 Complete joystick controller, Harmony XK, XKBA light hosting application
Place of Origin CHINA
Markenname Schneider
Zertifizierung CE
Model Number XKBA32330
Minimum Order Quantity 1
Preis USD$340/PC
Packaging Details ORIGINAL
Delivery Time IN STOCK
Payment Terms L/C,D/P,D/A,T/T,Western Union,MoneyGram
Supply Ability 500PCS

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Bezel material Metal Ambient air temperature for operation -20…70 °C
Overvoltage category Class I conforming to IEC 61140 IP degree of protection IP54 conforming to IEC 60529
Sie können die gewünschten Produkte ankreuzen und im Message Board mit uns kommunizieren.
Hinterlass eine Nachricht
Produkt-Beschreibung
Device short name XKB
Bezel material Metal
Fixing collar material Metal
Sale per indivisible quantity 1
Protective treatment TC
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -20…70 °C
Overvoltage category Class I conforming to IEC 61140
IP degree of protection IP54 conforming to IEC 60529
Standards EN/IEC 60947-5-1
CSA C22.2 No 14
UL 508
Product certifications UL
CSA
RRS
CCC
Contact code designation Q300
A300
Operator position information All positions
Operator profile Standard handle
Notch per direction 1…3 notches at 12°-20°-28° for each direction
Mechanical durability 1000000 cycles
Vibration resistance 6 gn (f= 1…70 Hz) conforming to IEC 60068-2-6
Shock resistance 20 gn (duration = 11 ms) conforming to IEC 60068-2-6

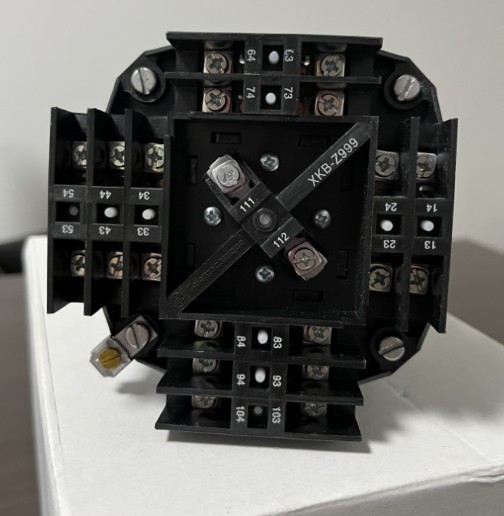

Connections - terminals Captive screw clamp terminals, <= 2 x 1.5 mm² with cable end
Captive screw clamp terminals, <= 1 x 2.5 mm² without cable end
Captive screw clamp terminals, >= 1 x 0.5 mm²
Short-circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
[Ith] conventional free air thermal current 10 A conforming to EN/IEC 60947-5-1
10 A conforming to CSA C22.2 No 14
10 A conforming to UL 508
[Ui] rated insulation voltage 500 V (pollution degree 3) conforming to IEC 60947-1
Compatibility code XKB
